Fluxus::Primitive Class Reference

#include <Primitive.h>

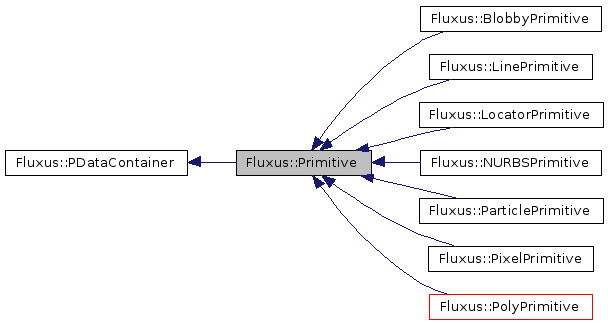

Inheritance diagram for Fluxus::Primitive:

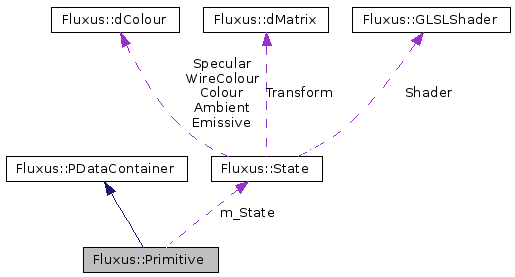

[legend]Collaboration diagram for Fluxus::Primitive:

[legend]

Primitive Interface
void	RenderBoundingBox ()
void	Prerender ()
void	ApplyState ()
void	SetState (State *s)
State *	GetState ()
void	SetPhysicalHint (bool s)
	A hint if we are in the physics system or not.
bool	IsPhysicalHint ()
bool	Hidden ()
void	Hide (bool s)
bool	IsSelectable ()
	Whether we should be included in the selection pass.
void	Selectable (bool s)
static void	RenderAxes ()
Public Member Functions
	Primitive ()
	Primitive (const Primitive &other)
virtual	~Primitive ()
virtual string	GetTypeName ()
	This needs to be set appropriately for all derived types.
virtual void	RecalculateNormals (bool smooth)
	Only makes sense for certain primitive types.
Abstract Primitive Interface
virtual Primitive *	Clone () const=0
virtual void	Render ()=0
virtual dBoundingBox	GetBoundingBox ()=0
virtual void	ApplyTransform (bool ScaleRotOnly=false)=0
Protected Attributes
State	m_State

---

Detailed Description

The base primitive class.

Definition at line 31 of file Primitive.h.

---

Constructor & Destructor Documentation

Primitive::Primitive

(

)

Definition at line 21 of file Primitive.cpp.

Primitive::Primitive

(

const Primitive &

other

)

Definition at line 28 of file Primitive.cpp.

Primitive::~Primitive

(

)

[virtual]

Definition at line 37 of file Primitive.cpp.

---

Member Function Documentation

virtual Primitive* Fluxus::Primitive::Clone

(

)

const [pure virtual]

Implements Fluxus::PDataContainer.

Implemented in Fluxus::BlobbyPrimitive, Fluxus::LinePrimitive, Fluxus::LocatorPrimitive, Fluxus::NURBSPrimitive, Fluxus::ParticlePrimitive, Fluxus::PixelPrimitive, Fluxus::PolyPrimitive, and Fluxus::TextPrimitive.

virtual void Fluxus::Primitive::Render

(

)

[pure virtual]

Implemented in Fluxus::BlobbyPrimitive, Fluxus::LinePrimitive, Fluxus::LocatorPrimitive, Fluxus::NURBSPrimitive, Fluxus::ParticlePrimitive, Fluxus::PixelPrimitive, Fluxus::PolyPrimitive, and Fluxus::TextPrimitive.

virtual dBoundingBox Fluxus::Primitive::GetBoundingBox

(

)

[pure virtual]

Implemented in Fluxus::BlobbyPrimitive, Fluxus::LinePrimitive, Fluxus::LocatorPrimitive, Fluxus::NURBSPrimitive, Fluxus::ParticlePrimitive, Fluxus::PixelPrimitive, and Fluxus::PolyPrimitive.

virtual void Fluxus::Primitive::ApplyTransform

(

bool

ScaleRotOnly = false

)

[pure virtual]

Implemented in Fluxus::BlobbyPrimitive, Fluxus::LinePrimitive, Fluxus::LocatorPrimitive, Fluxus::NURBSPrimitive, Fluxus::ParticlePrimitive, Fluxus::PixelPrimitive, and Fluxus::PolyPrimitive.

virtual string Fluxus::Primitive::GetTypeName

(

)

[inline, virtual]

This needs to be set appropriately for all derived types.

Reimplemented in Fluxus::BlobbyPrimitive, Fluxus::LinePrimitive, Fluxus::LocatorPrimitive, Fluxus::NURBSPrimitive, Fluxus::ParticlePrimitive, Fluxus::PixelPrimitive, Fluxus::PolyPrimitive, and Fluxus::TextPrimitive.

Definition at line 48 of file Primitive.h.

virtual void Fluxus::Primitive::RecalculateNormals

(

bool

smooth

)

[inline, virtual]

Only makes sense for certain primitive types.

Reimplemented in Fluxus::BlobbyPrimitive, Fluxus::NURBSPrimitive, Fluxus::PixelPrimitive, and Fluxus::PolyPrimitive.

Definition at line 51 of file Primitive.h.

void Primitive::RenderBoundingBox

(

)

Definition at line 103 of file Primitive.cpp.

void Primitive::RenderAxes

(

)

[static]

Definition at line 73 of file Primitive.cpp.

void Primitive::Prerender

(

)

Definition at line 41 of file Primitive.cpp.

void Fluxus::Primitive::ApplyState

(

)

[inline]

Definition at line 59 of file Primitive.h.

void Fluxus::Primitive::SetState

(

State *

s

)

[inline]

The primitives state stores everything general to all primitives

Definition at line 63 of file Primitive.h.

State* Fluxus::Primitive::GetState

(

)

[inline]

Definition at line 64 of file Primitive.h.

void Fluxus::Primitive::SetPhysicalHint

(

bool

s

)

[inline]

A hint if we are in the physics system or not.

Definition at line 67 of file Primitive.h.

bool Fluxus::Primitive::IsPhysicalHint

(

)

[inline]

Definition at line 68 of file Primitive.h.

bool Fluxus::Primitive::Hidden

(

)

[inline]

Todo:

would this be better in the scenegraph node? Hidden status - prevents rendering

Definition at line 72 of file Primitive.h.

void Fluxus::Primitive::Hide

(

bool

s

)

[inline]

Definition at line 73 of file Primitive.h.

bool Fluxus::Primitive::IsSelectable

(

)

[inline]

Whether we should be included in the selection pass.

Definition at line 76 of file Primitive.h.

void Fluxus::Primitive::Selectable

(

bool

s

)

[inline]

Definition at line 77 of file Primitive.h.

---

Field Documentation

State Fluxus::Primitive::m_State [protected]

Definition at line 81 of file Primitive.h.

---

The documentation for this class was generated from the following files:

• src/Primitive.h
• src/Primitive.cpp

---
